Turbine pair clamp butterfly valve


Price:

$

Product Origin:China Shipping Port:Xiamen Lead Time:15-20days Payment:TT, LC Size:DN50 - DN200 Material:Ductile Iron Working Pressure:1.6MPa Type:Butterfly Valve

Categorie:

Keywords:

Detailed introduction



Butterfly valve is a valve that isolates or regulates the flow of a fluid. The closing mechanism is a disk that rotates.



Products Features

Operation is similar to that of a ball valve, which allows for quick shut off.

Butterfly valves are generally favored because they cost less than other valve designs, and are lighter weight so they need less support. The disc is positioned in the center of the pipe. A rod passes through the disc to an actuator on the outside of the valve. Rotating the actuator turns the disc either parallel or perpendicular to the flow.



Product Parameter

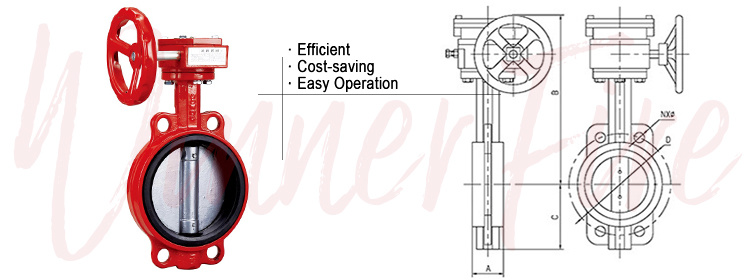

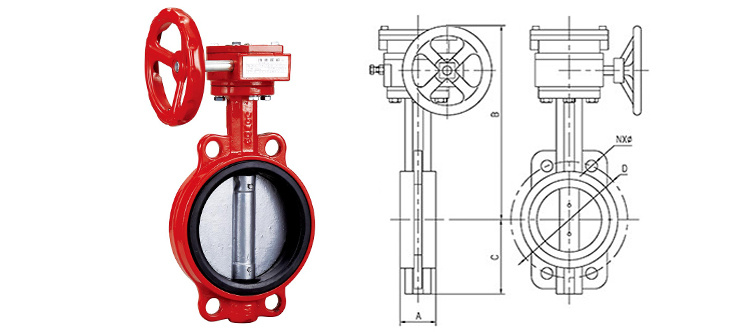

Model A C D NXQ
ZSXF-50-D 46 68 125 4X18
ZSXF-65-D 48 78 145 4X18
ZSXF-80-D 50 90 160 4X18
ZSXF-100-D 56 108 180 4X18
ZSXF-125-D 58 120 210 4X18
ZSXF-150-D 60 130 240 4X22
ZSXF-200-D 65 162 295 4X22
