Turbo grooved butterfly valve
Price：
$
Keywords:
Detailed introduction
Butterfly valve is a valve that isolates or regulates the flow of a fluid. The closing mechanism is a disk that rotates.
Products Features
Operation is similar to that of a ball valve, which allows for quick shut off.
Butterfly valves are generally favored because they cost less than other valve designs, and are lighter weight so they need less support. The disc is positioned in the center of the pipe. A rod passes through the disc to an actuator on the outside of the valve. Rotating the actuator turns the disc either parallel or perpendicular to the flow.
Product Parameter

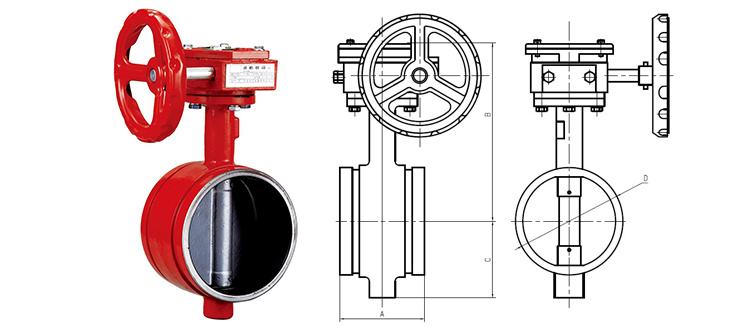

| Model | A | C | D |
| ZSXF-50-D(G) | 90 | 55 | 60.3 |
| ZSXF-65-D(G) | 90 | 65 | 76.1 |
| ZSXF-80-D(G) | 100 | 70 | 88.9 |
| ZSXF-100-D(G) | 110 | 87 | 114.3 |
| ZSXF-125-D(G) | 110 | 100 | 139.7 |
| ZSXF-150-D(G) | 110 | 115 | 165.1 |
| ZSXF-200-D(G) | 134 | 150 | 219.1 |
