Dark rod flange gate valve


Price:

$

Product Origin:China Shipping Port:Xiamen Lead Time:15-20days Payment:TT, LC Size:DN50 - DN200 Material:Ductile Iron Working Pressure:1.6MPa Type:OS&Y Gate Valve

Categorie:

Keywords:

Detailed introduction



For a rising stem valve, the stem will go up while opening the valve and move down when you close the valve. You can see in the image. In inside screw design, the threaded portion of the stem is in contact with the flow medium and when you open the valve, handwheel rise with the stem. Whereas in the case of outside screw design, the only smooth portion is exposed to the flow medium and stem will rise above the handwheel. This type of valve is also known as OS & Y valve. OS & Y means outside steam and York.



Products Features

- Precision-machined valve stem, reduces operating torque.

- Non-toxic powder epoxy resin spraying on botn inside and outside of the valve to enhance corrosion resistance and improve water quality.

- The valve plate is covered with rubber both inside and outside to guaranteed good sealing. It has strong connection to avoid fall off after long-term use.

- Thrust bearings reduce frictional resistance and reduce operating torque.

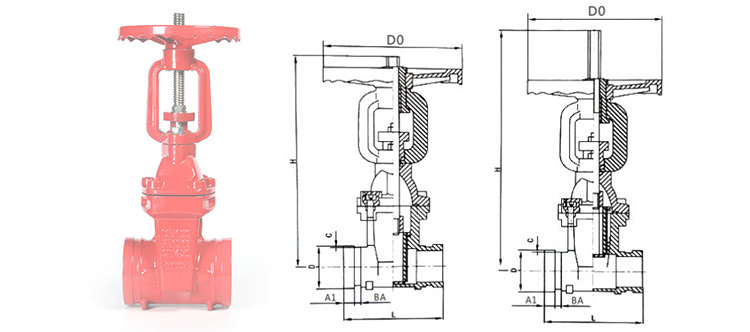

Product Parameter



DN 50 65 80 100 125 150 200 250 300 350 400
D 57 60 76 178 322 114 133 159 219 273 325 377 426
140 165
A1 14.5 14.5 14.5 16 16 16 19 19 19 25 25
BA 9.5 9.5 9.5 9.5 9.5 9.5 13 13 13 13 13
C 2.2 2.2 2.2 2.2 2.2 2.2 2.5 2.5 3.3 3.3 5.5
Z81X     L 145 180 180 180 200 240 275 325 355
H 325 455 455 455   500 620 750 800
D0 180 200 200 200   240 320 320 400
