FM200 Gas Fire extinguishing System


Price:

$

• Charge Pressure:4.2Mpa • Max Working Pressure:5.3 Mpa • Filling Density:≤1.2kg/l • Starting power supply:DC24V • Injection time:≤10 S  • MOQ:10pieces

Keywords:

fm200

fm200 gas

fm200 cylinders

Detailed introduction

fm200

FM200 Gas Fire Extinguisher System

* FM200 gas fire extinguishing device is a type of clean agent fire suppression system.  FM200 is a colorless, odorless, and electrically non-conductive gas known as heptafluoropropane (HFC-227ea).  It is commonly used in areas where traditional water-based fire suppression systems are not suitable, such as server rooms, data centers, electrical equipment rooms, museums, and archives.

* According to the requirements of different application sites, it can be composed of unit independent system and combined distribution system, and adopt full flooding fire extinguishing mode to achieve fire protection for single and multi-protection areas, with advanced technology, high fire extinguishing efficiency and easy maintenance.

Specification

System Type With network
Charge Pressure(20℃)

4.2 Mpa

Max Working Pressure(50℃) 5.3 Mpa
Filling density ≤1.2 kg/L
Storage container volume(L) 90/120/150/180
Starting power supply DC24V
Injection time ≤10 S
Environment Temperature 0~50℃
Startup mode Automatic,manual,machanical emergency start

Constituent structure

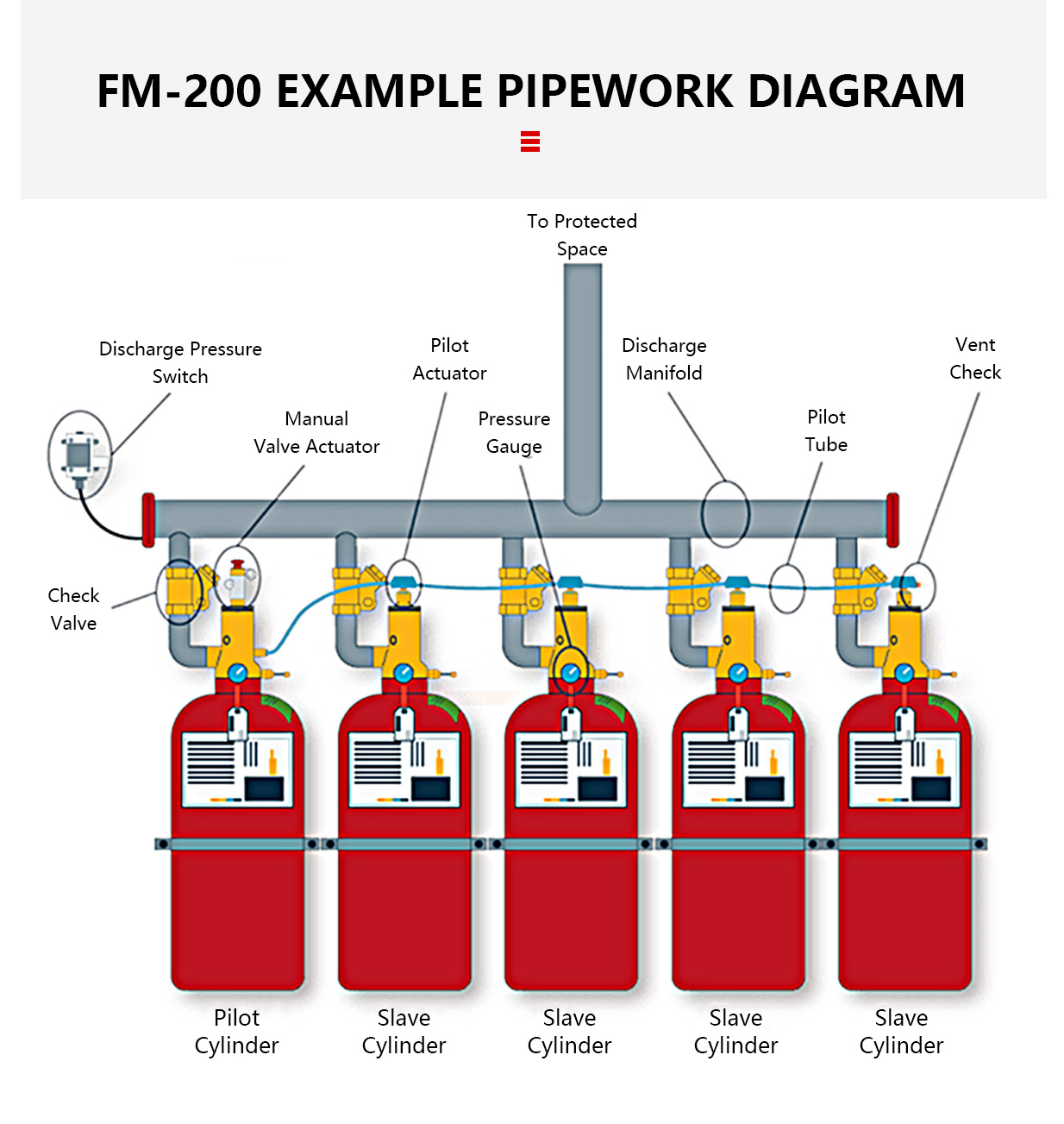

The FM200 fire extinguishing system with external pressure storage of pipe network is composed of bottle assembly frame, fire extinguishing agent storage bottle, container valve, power bottle assembly, high pressure hose, liquid check valve, collecting pipe, safety valve, distributing pipe, selection valve, pressure signal, fire extinguishing agent conveying pipe, nozzle, starting bottle, driver, starting pipeline, starting gas check valve, etc. It is an intelligent automatic fire extinguishing system.
