Pressure restricting angle valve (Spring clip)
Price：
$
Keywords:
pressure restricting valve
、
restricting valve
、
Detailed introduction
Pressure restricting angle valve (Spring clip)
Pressure restricting angle valve (Spring clip) is shut off valve, as well as field adjustable flow throttling valve, designed to reduce downstream water pressure under flowing condition. It is equipped with spring clip to control flow and pressure, and the spring clip can be removed for full flow.
Features and Specification
Material：Brass
Size：1-1/2" 2-1/2"
Pattern：Angle
W. pressure: Max inlet 175 psi
Function: FDC outlet, or hose rack assembly
Surface: Rough / polished / chrome plated

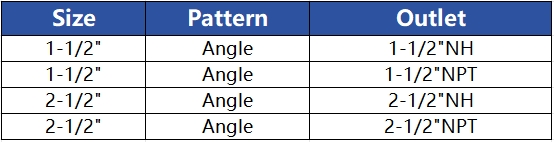

Available Size
Notes
1. 1-1/2″ valve settings range from 1 to 15, used to restrict outlet residual pressure 65 ~ 100 psi at 100 gpm for Class II system.
2. 2-1/2″ valve settings range from 1 to 20, used to restrict outlet residual pressure 100 ~ 175 psi at 250 gpm for Class I and Class III systems.
3. The working pressure is 175 psi by UL listed, and 300 psi by FM approved.
—
